Product Details:
Payment & Shipping Terms:
|
| Stone Type: | Basalt | Specification: | 600*600 Mm |
|---|---|---|---|
| Surface Treated: | Polished | Application: | Indoor And Outdoor Decoration |
| Product Name: | Customized Basalt Stone Aluminium Honeycomb Panel | Thickness: | Customized |
| Highlight: | aluminium honeycomb sandwich panel,stone aluminum honeycomb panel |
||
600*600 Sized With Customized Thickness Basalt Stone Honeycomb Panel
Product Description
General Description
The ultra-thin stone honeycomb composite panels are innovated because of the limited natural stone resources and its application restrict. It is a new type of building materials with a better impact resistance than the ordinary natural stone is with a weight of only 16 kg, is only 1/6 of the weight of its original natural stone slide but the compressive strength is 6 times more than the original stone slices. Completely overcomed the natural stone’s defects on weight, fragile and other aspects, it provides a more superior performance and wide application field as a new generation building material. Ultra-thin stone honeycomb composite panel is simply bonded with an about 3mm ~ 5mm thick stone sheet and an aluminum honeycomb substrate with a special purpose adhesive. It not only saves the stone material and reduces the weight of finished products, but reflects better in the stone effect. Based on these, there is a large demand from the market.

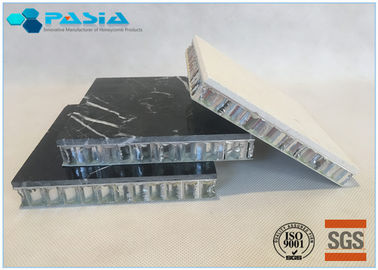

Basalt Stone aluminium honeycomb panel: It is a structure sandwiched with aluminium honeycomb panel and very thin basalt stone veneer.
Advantages:
1.light weight
2.limited radiation pollution
3.stone material saving,
4.broader size and so on.
Mainly Application fields:
ceiling, curtain wall, indoor wall panel, floors etc, which are being more and more widely used on the decoration and renovation of the industries of construction, vehicles, ships, etc.
Specification
| Item | Material | Thickness |
Surface Coating |
Size | Color |
| Basalt Stone Aluminium Honeycomb Panel with Edge Sealed | Aluminum Alloy + Basalt Stone |
Standard Thickness: 20, 25mm; Or Custom Made available |
Fluorine carbon coated |
Standard width: Length≤6000mm Width≤1500mm |
Black / Stone, subject to user demand |
Mechanical Properties
| ASTM | Unit | 10mm | 15mm | 20mm | |
| Unit theory weight | kg/m2 | 5.4 | 5.6 | 5.75 | |
| Tensile strength | E8 | N/mm2 | 806 | 598 | 455 |
| Endurance capacity | E8 | N/mm2 | 531 | 405 | 279 |
| Elongation | E8 | % | 1.2 | 1.4 | 1.7 |
| Bending rigidity | C393 | X106N.mm2 | 8.03 | 15.4 | 38.44 |
| Bend elasticity rate | N/mm2 | 50000 | 40600 | 38.44 | |
| Temeprature total extension coefficient | D696 | X10-6N/℃ | 0.24 | 0.24 | 0.24 |
| Heat conduction rate | D976 | Kcal/mhr℃ | 0.23 | 0.19 | 0.15 |
| Heat transform temperature | D648 | ℃ | 200 | 200 | 200 |
| Bonding strength | C297 | 12 | 12 | 12 | |
| Surtace smoothness | 1mm/M.Maximum deviation:1mm/M | ||||
| Flame retardabt property | Nonflammable,match relevant fire resistance standard | ||||
| Soundproof function | Be decided by layout of printed sheet installation angle,0-3dB | ||||
Feactures
It possesses advantages of:
| Light weight |
| Easy installation |
| High strength |
| Increased anti-pollution ability |
| Easier control of uniform color |
| Soundproof, moistureproof |
| Energy saving and consumption reduction |
| Reduce costs |
| Workable at the area of regular stone not workable |
Structure Combination
1) stone - aluminum honeycomb composite panels
2) stone - hard substrate composite panel
3) stone - tile composite panel
4) stone - stone composite panel
5) stone - glass composite panel known as stone translucent plate
2) by shape is divided into:
① general type plate
② arc plate
3) According to the surface:
① mirror panel
② matt panel
③ rough panel
Technical Options
| Thickness of Backing Panel | 8-50 mm |
| Panel Thickness (Standard) |
20 mm for indoor; 25 mm for outdoor (6mm stone surface + 19mm backing panel commonly used) or customized |
|
Backing Panel Makeup (Interior curtain wall) |
Both sides 0.7mm, 0.8mm mill Aluminum panel |
| Stone | Mable / Granite / Limestone / Sandstone / Travetine,etc. |
| Finish | Polished / Honed / Flammed / Hammer Bush |
| Cell Size (Standard) | A6, 0.06mm |
| Adhesive | Aero Grade Epoxy Adhesive or PU glue |
| Anchoring Brackets | Aluminum or Stainless Steel |
| Application |
Interior wall, floor, ceiling, counter top; Exterior wall, cladding, special parts etc; Shipbuilding, Train, Aircrafts |
| Certification | NOA for High Velocity Hurricane Zone/Warnock&Hersey |
| Feature | Lightweight / Large Area / High Impact Strength / Fast Installation / Cost decrease/Eco-friendly/Sound and thermal insulation |
| Maximum Dimension (mm) | 1500×3000 , or Subject to slab size |
